Thermal potting sealant

Product Name:

Thermal potting sealant

Product Description

Thermal conductive potting silicone sealant RTV-2

Features Applications

.Thermal conductivity: 1.0W/M-K . Power transistor module

. Two components: A & B . LED driving power

. Auto deaeration . Integrated chipset

. Good high & low temperature resistance . LED encapsulation

. Good physical and chemical stability . Power module

. Others

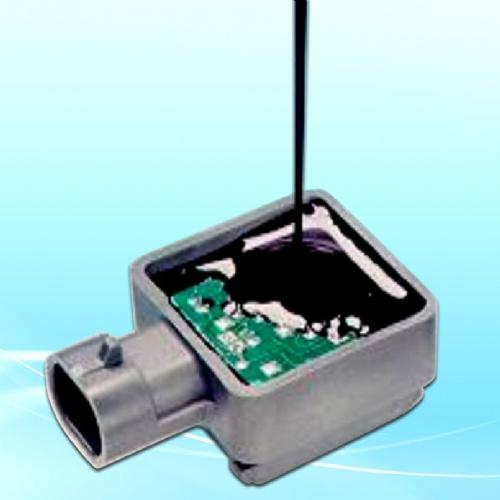

Method of Use (As above picture shows):

. Compound A and B per weight rate

. Fill and seal after completely compounding.

Physical Properties:

PROPERTY	PC100-01	PC100-02	PC200-01	PC200-02	TEST METHOD
Color	A: Gray B:Lucency	A: Gray B:Lucency	A: White B: White	A: White B: White	Visual
Mix Ratio by Weight	10:1	10:1	1:1	1:1	----
Hardness	60°C Shore C	60°C Shore C	75°C Shore C	75°C Shore C	ASTM D2240
Adhesiveness	5000cps	5000cps	5000cps	5000cps	ASTM D412
Pot Life (Hour, 25°C)	1H	5H	0.5H	1H	----
Room Curing Time	2H	24H	1H	2H	----
Cured Density	1.7	1.7	1.7	1.7	ASTM D792
Thermal conductivity	1.0 W/M-K	1.0 W/M-K	1.0 W/M-K	1.0 W/M-K	ASTM D5470
Shelf Life	12 months under 25°C with sealed container.
