Shenzhen Wahng Sahn Technology Co.,Ltd.

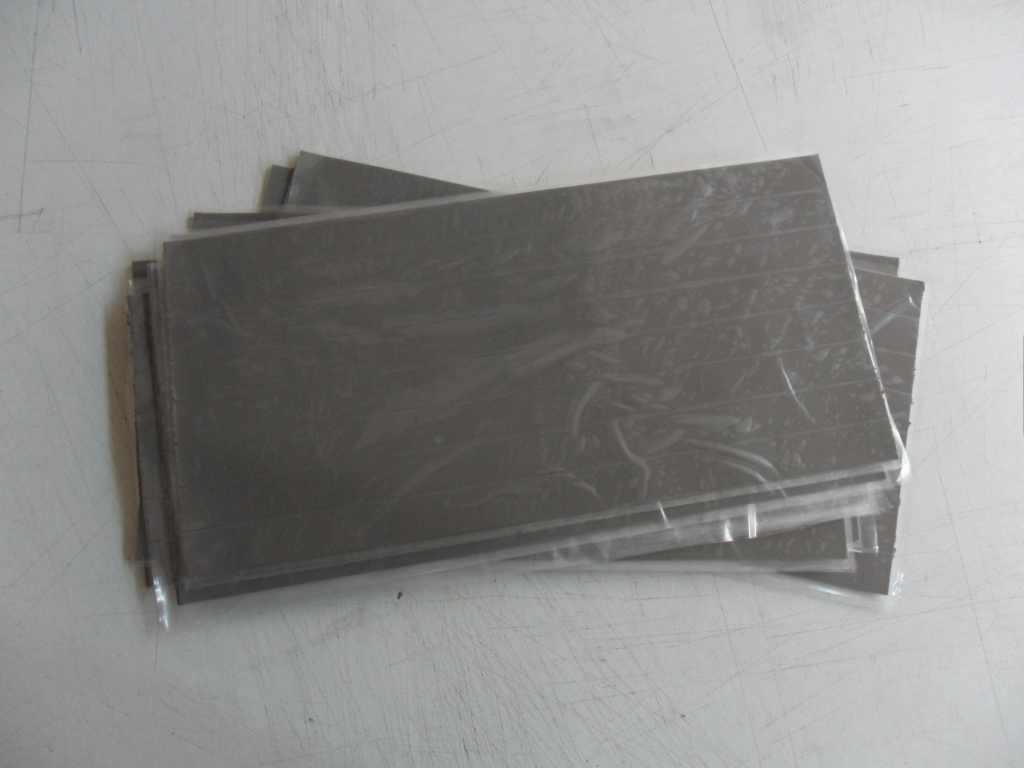

Thermally conductive silicone pad/sheet      Item: HC080

Features                                             Applications        Designed Size Offered

.Thermal conductivity: 0.8W/M-K                  . Power supply            .Customized die cutting

. Electrically isolating                                         . LED light

. High reliability                                                  . LCD-TV/PDP

. Easy handling                                                   . Router

. Low volatile material                                        . Digital TV box

. Others. REACH, RoHS & UL compliant     . Solar Panel

Part Number Coding Rules:

Example:HC080-H30-T05/G-FG-M1

Description:

HC080: Thermal conductivity is 0.8W/MK.

 H30: Hardness degree is 30 degrees.  Producing range of hardness is 10-40°C.

 T05: Thickness is 0.5 mm.  Producing range of thickness is 0.3-14.0 mm

G: Gray color.    BK: Black color.

FG: Fiberglass reinforced.

M1: Single-side adhesive.       M2: Double-sides adhesive.

Physical Properties:
