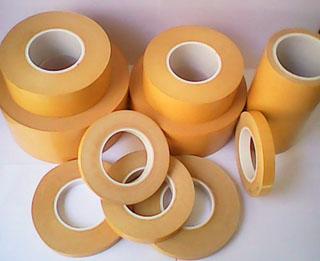

Yellow thermal conductive tape
Product Name:
Yellow thermal conductive tape
:
:
:


Product Description

 Thermal conductive adhesive tapes

Features                                     Applications              Designed Size Offered

.Thermally conductive                          . Electronic devices             .Customized die cutting

. Electrically isolating                            . LED lightings

. Soft and compressible                        . Printings

. Wide temperature compliance          . Hardware

. Strong sticky adhesive                     . Power supply

. REACH, RoHS & UL compliant       . Others

Physical Properties:

Thickness

Unit(mm)

0.2

0.25

0.3

0.35

Color

/

White

white

white

white

Specific Gravity

G/cm3

1.8

1.8

1.8

1.8

Thermal conductivity

W/M.K

1.2

1.2

1.2

1.2

Heat Resistance

℃in2/W

0.7

0.72

0.74

0.76

Breakdown Voltage

  VAC/mm

4000

4500

5000

5000

Application Temperature

-40~+120

-40~+120

-40~+120

-40~+120

Peel Adhesion

N/25mm

12

14.3

16.4

18.5

Tack

N/25mm

14.3

18

25

30
