Thermal silicone mud
Product Name:
Thermal silicone mud
:
:
:


Product Description

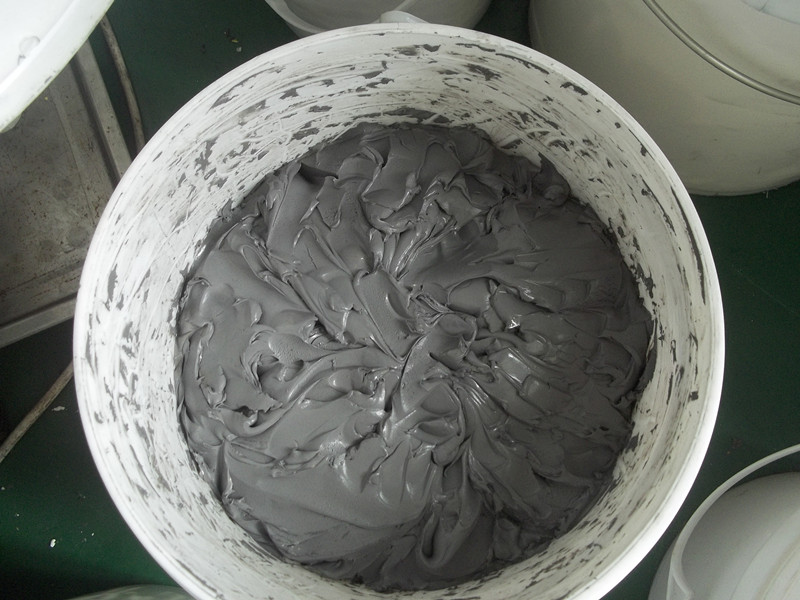

 Thermal conductive mud

Features                                                      Applications

﹒Thermal conductivity:1.0/2.0/3.0                                     Power Modules

﹒No settlement, stored at room temperature                         Integrated chip

﹒Excellent resistance to high and low                                    Car electronic products

temperature , excellent resistance to weather                     Controller

Radiation resistance and excellent dielectric properties    Telecommunications Equipment

Excellent chemical and stability mechanical

﹒Low stress, low modulus thermal products

﹒Has plasticity like plasticine , easy to operate

﹒Suitable for the product design which require big

  variation in the thickness



Property

HCN-100

HCN-200

 HCN-300

TEST

METHOD



UNIT

Density

1.0

2.0

3.0

ASTM D792

---

      Color

White

Gray

Gray

---

Visual

Thermal conductivity

1.0

2.0

3.0

ASTM D5470

W/mK

Thermal Resistance

0.004

0.003

0.001

ASTM D5470

C-In2/W

Breakdown Voltage

1100

1000

1000

ASTM D149

VAC/mil

Dielectric Constant

4.5

4.7

4.8

ASTM D150

---

Volume Voltage

>1013

>1013

>1012

ASTM D257

---

Work Temp

-50℃  to  200℃



 Store Method:

 . This item can be saved for 24 months when it is sealed under room temperature 25
