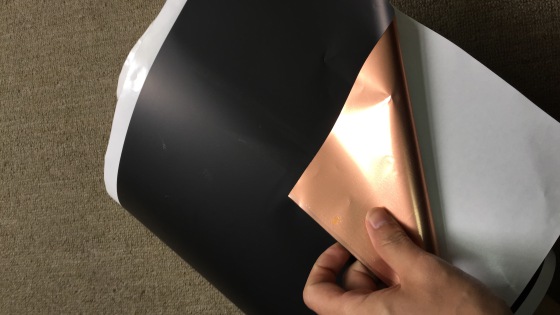

Nano carbon copper foil

Product Name:

Nano carbon copper foil

Product Description

Datasheet：

Note: The following technical data and data should be considered representative or typical and not suitable for special purposes.

Item Spe.	NCC-45	NCC-55	NCC-70	NCC-90
Thickness（mm)	0.045±0.006	0.055±0.006	0.070±0.006	0.090±0.006
Thermal conductivity (W/mk)	680 or above	700 or above	730 or above	780 or above
Thermal diffusion coefficient（m²/s)	130 or above	140 or above	150 or above	170 or above
Emissivity	0.95	0.95	0.95	0.95
Density（g/m³)	7.6	7.9	8.2	8.4
Specific heat （50^o J/(kg.k))	685	635	588	540
Heat distortion temperature（℃）	200	200	200	200
Tensile Strength（MPa)	295 or above	335 or above	375 or above	385 or above
Adhesion（ASTM)	4B or above	4B or above	4B or above	4B or above
Flexibility（R5/180^O)	10,000 or more	10,000 or more	10,000 or more	10,000 or more
Conductivity（S/m)	10-5	10-5	10-5	10-5
