Thermal adhesive glue
Product Name:

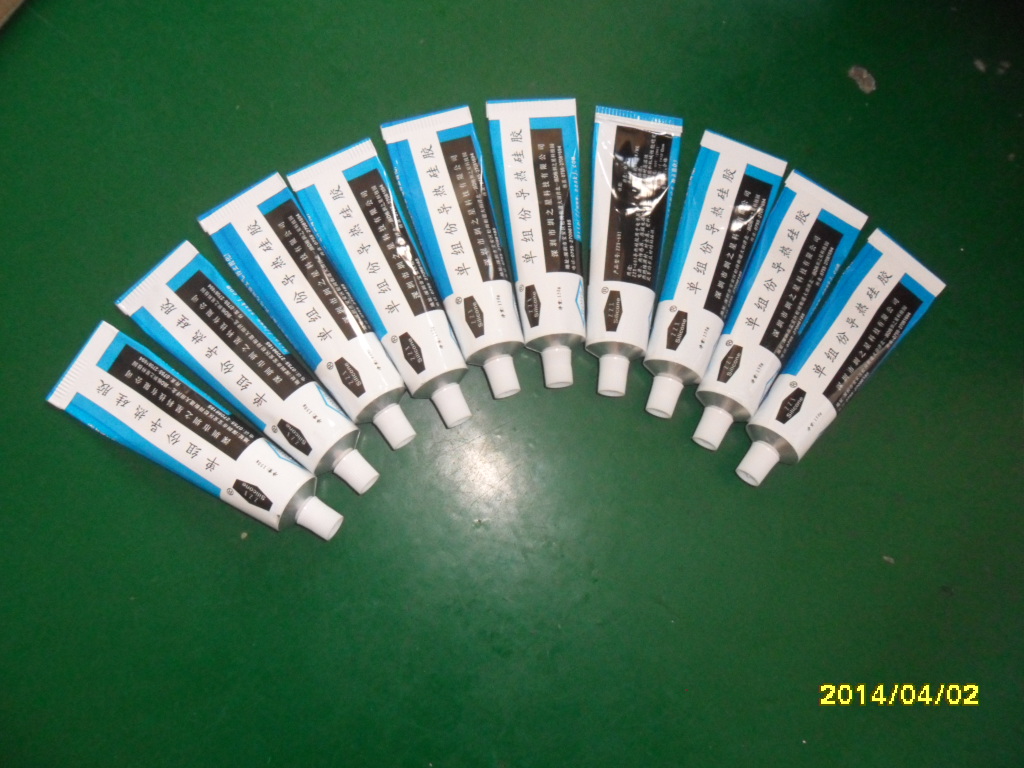

Thermal adhesive glue
:
:
:


Product Description

rtv-1Thermal silicone adhesive sealant RTV-1

Features                                                             Applications

. Thermal conductivity:1.2 W/M-K                                  . Electronic devices
. One-component                                                                   . Power supply

. Auto deaeration                                                            . Thick film IC

. Good high and low temperature resistance   . Heat and electricity transducer

. Good physical and chemical stability                            . Metal/Plastic/ ceramics BaseLayer

. REACH, RoHS and UL compliant  . Others

Method of Use:

. Mix it round slightly before use.

. Close it tightly after use, so as to avoid curing whilst contacting air.

Physical Properties:

PROPERTY

HC601

HC602

TEST METHOD

Color

Pasty/Gray

Pasty/Gray

Visual

Hardness

60 °C Shore C

60 °C Shore C

ASTM D2240

Adhesiveness

5000cps

5000cps

ASTM D412

Operating Time ( 25°C )

0.5H

1H

Visual

Volume Impedance

1.1*1016Ω

1.1*1016Ω

ASTM D527

Room Temp Curing

24H

24H

Visual

Breakdown Voltage

25KV/mm

25KV/mm

ASTM D149

Continuous Use Temp

-60-200°C

-60-200°C

EN344

Corrosion Stability

Qualified

Qualified

Visual

Thermal Conductivity

1.2W/M-K

1.2W/M-K

ASTM D5470

Shelf Life

12 months under 25 °C with sealed container.

Standard Packing

300ml/tube (25pcs/CTN),100ml/tube(100pcs/CTN)
