Shenzhen Wahng Sahn Technology Co.,Ltd.

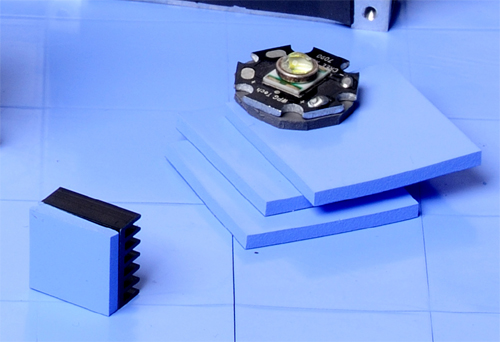

High thermally conductive silicone pad       Item: HC350

Features                                        Applications        Designed Size Offered

.Thermal conductivity: 3.5W/M-K       . Power supply             .Customized die cutting

. High hardness                               . LED light

. High reliability                               . LCD-TV/PDP

. Easy handling                               . Router

. Low volatile material                      . Digital TV box

. REACH, RoHS & UL compliant        . Solar Panel
                                                     . Others

Part Number Coding Rules:

Example: HC350-H45-T05-M1

HC350: Thermal conductivity is 3.5W/MK.

 H45: Hardness degree is 45 degrees. Producing range of hardness is 45-65°C.

 T05: Thickness is 0.5 mm. Producing range of thickness is 0.3-14.0 mm

 M1: Single-side adhesive

    M2: Double-sides adhesive

Physical Properties:
