Shenzhen Wahng Sahn Technology Co.,Ltd.

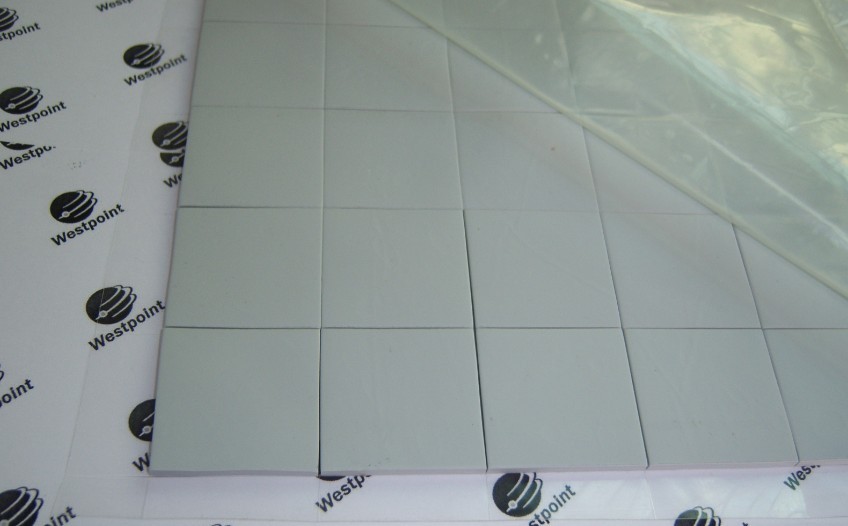

High thermally conductive silicone pad       Item: HC300

Features                                          Applications        Designed Size Offered

.Thermal conductivity: 3.0W/M-K          . Power supply            .Customized die cutting

. High hardness                                  . LED light

. High reliability                                   . LCD-TV/PDP

. Easy handling                                  . Router

. Low volatile material                         . Digital TV box

. REACH, RoHS & UL compliant         . Solar Panel

. Others

Part Number Coding Rules:

Example: HC300-H45-T05-M1

HC300: Thermal conductivity is 3.0W/MK.

 H45: Hardness degree is 45 degrees. Producing range of hardness is 45-65°C.

 T05: Thickness is 0.5 mm. Producing range of thickness is 0.3-14.0 mm

 M1:  Single-side adhesive;   M2:  Double-sides adhesive
Physical Properties:
