Shenzhen Wahng Sahn Technology Co.,Ltd.

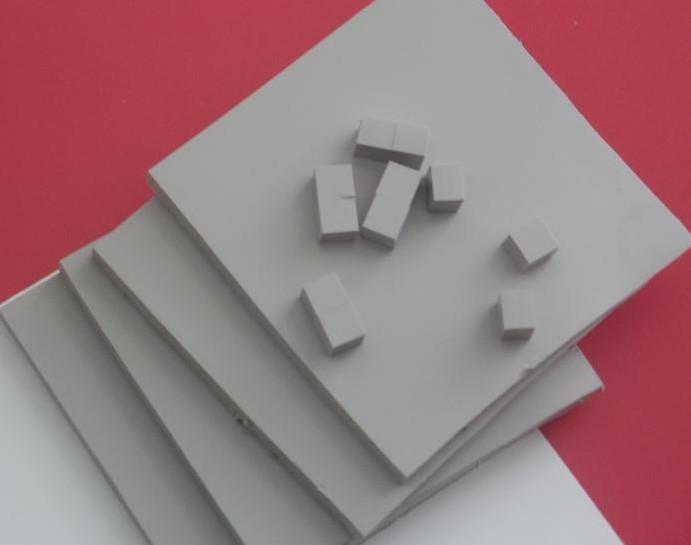

Thermally conductive silicone pad           Item: HC260

Features                                                 Applications        Designed Size Offered

.Thermal conductivity: 2.6W/M-K                       . Power supply            .Customized die cutting

. High hardness                                                       . LED light

. High reliability                                                      . LCD-TV/PDP

. Easy handling                                                       . Router

. Low volatile material                                            . Digital TV box

. REACH, RoHS & UL compliant                  . Solar Panel

. Others

Part Number Coding Rules:

Example: HC260-H30-T05-M1

HC260: Thermal conductivity is 2.6W/MK.

 H30: Hardness degree is 30 degrees. Producing range of hardness is 30-70 °C.

 T05: Thickness is 0.5 mm. Producing range of thickness is 0.3-14.0 mm

 M1:  Single-side adhesive;   M2:  Double-sides adhesive

Physical Properties:
